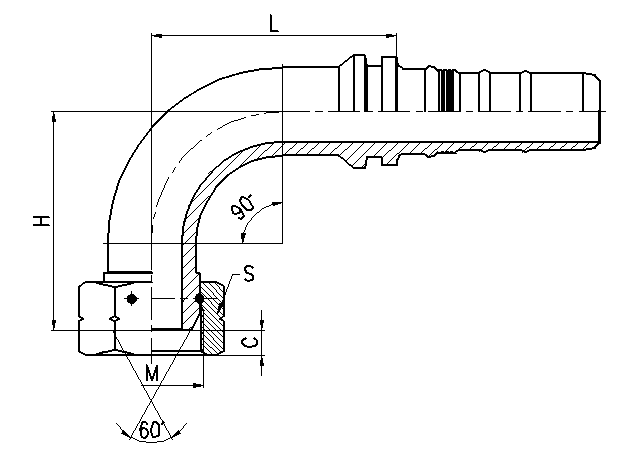

1-trip inner and outer rubber hose fitting 22693-W
| Part No. | Thread M | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | H | C | S | L | ||
| 22693-12-12W | G3/4″×14 | 19 | 12 | 65 | 10.9 | 32 | 69 |
| 22693-16-16W | G1″×11 | 25 | 16 | 72 | 11.7 | 41 | 84 |
| 22693-20-20W | G1.1/4″×11 | 32 | 20 | 84.5 | 11 | 50 | 103 |
| 22693-24-24W | G1.1/2″×11 | 38 | 24 | 100.5 | 13 | 55 | 119 |
| 22693-32-32W | G2″×11 | 51 | 32 | 123.5 | 16 | 70 | 141 |
