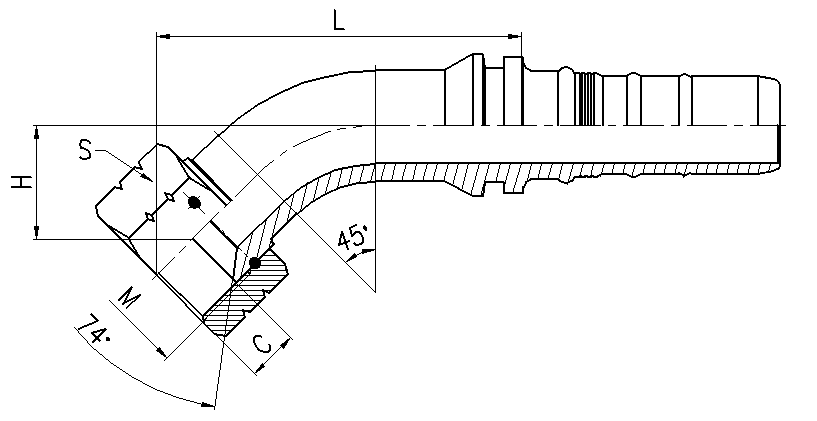

1-trip inner and outer rubber hose fitting 26743-W
| Part No. | Thread M | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | H | C | S | L | ||
| 26743-12-12W | 1.1/16″×12 | 19 | 12 | 30 | 15 | 32 | 78 |
| 26743-16-16W | 1.5/16″×12 | 25 | 16 | 33 | 16 | 41 | 90 |
| 26743-20-20W | 1.5/8″×12 | 32 | 20 | 38 | 17 | 50 | 110 |
| 26743-24-24W | 1.7/8″×12 | 38 | 24 | 40.5 | 20 | 55 | 121 |
| 26743-32-32W | 2.1/2″×12 | 51 | 32 | 47.5 | 23.5 | 75 | 141 |
