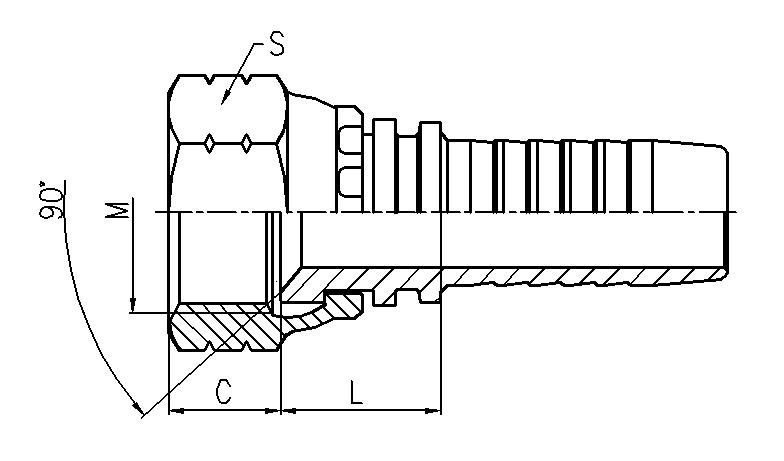

hose fitting SAE ORFS 27811
| Part No. | Thread M | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | C | S | L | |||
| 27811-04-03 | 7/16″×20 | 5 | 03 | 9 | 15 | 14 | |
| 27811-04-04 | 7/16″×20 | 6 | 04 | 9 | 15 | 15 | |
| 27811-05-05 | 1/2″×20 | 8 | 05 | 9.5 | 17 | 15.5 | |
| 27811-06-04 | 5/8″×18 | 6 | 04 | 11.3 | 22 | 17 | |
| 27811-06-05 | 5/8″×18 | 8 | 05 | 11.3 | 22 | 17 | |
| 27811-06-06 | 5/8″×18 | 10 | 06 | 11.3 | 22 | 17 | |
| 27811-08-08 | 3/4″×16 | 13 | 08 | 11 | 24 | 18 | |
| 27811-10-08 | 7/8″×14 | 13 | 08 | 13 | 27 | 18.5 | |
| 27811-10-10 | 7/8″×14 | 16 | 10 | 13 | 27 | 20 | |
| 27811-12-12 | 1.1/16″×14 | 19 | 12 | 14.3 | 32 | 21.5 | |
| Note:1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 27812-XX-XX. | |||||||
