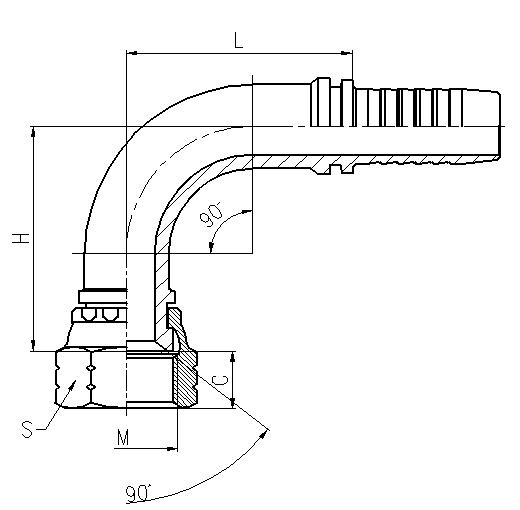

hose fitting SAE ORFS 27891
| Part No. | Thread M | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | H | C | S | L | ||
| 27891-04-04 | 7/16″×20 | 6 | 04 | 26 | 9 | 15 | 27 |
| 27891-06-04 | 5/8″×18 | 6 | 04 | 28 | 11.3 | 22 | 27 |
| 27891-06-05 | 5/8″×18 | 8 | 05 | 32 | 11.3 | 22 | 31 |
| 27891-06-06 | 5/8″×18 | 10 | 06 | 36 | 11.3 | 22 | 34.5 |
| 27891-08-08 | 3/4″×16 | 13 | 08 | 44 | 11 | 24 | 43 |
| 27891-10-08 | 7/8″×14 | 13 | 08 | 44.5 | 13 | 27 | 43 |
| 27891-10-10 | 7/8″×14 | 16 | 10 | 51 | 13 | 27 | 51.5 |
| 27891-12-12 | 1.1/16″×14 | 19 | 12 | 58.5 | 14.3 | 32 | 59 |
| Note:1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 27892-XX-XX. | |||||||
