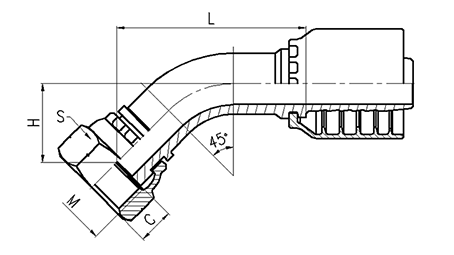

Integrated Hose Fitting BSP 22241-RW
| Part No. | Thread M | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | H | C | S | L | ||
| 22241-04-04RW | G1/4″×19 | 6 | 04 | 14 | 8 | 19 | 34 |
| 22241-06-06RW | G3/8″×19 | 10 | 06 | 18 | 9 | 22 | 42 |
| 22241-08-08RW | G1/2″×14 | 13 | 08 | 22 | 10.5 | 27 | 51.5 |
| 22241-10-10RW | G5/8″×14 | 16 | 10 | 25.5 | 12 | 30 | 61 |
| 22241-12-12RW | G3/4″×14 | 19 | 12 | 28 | 13.5 | 32 | 67.5 |
| 22241-16-16RW | G1″×11 | 25 | 16 | 31 | 15.5 | 41 | 79 |
| 22241-20-20WRW | G1.1/4″×11 | 32 | 20 | 38 | 15.5 | 50 | 97 |
| 22241-24-24WRW | G1.1/2″×11 | 38 | 24 | 43.5 | 17.5 | 55 | 110 |
| 22241-32-32WRW | G2″×11 | 51 | 32 | 51 | 23 | 70 | 127 |
| Note:1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 22242-XX-XXRW. | |||||||
