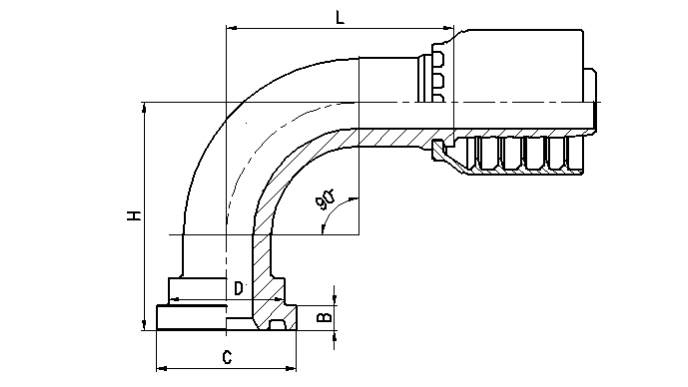

Integrated Hose Fitting FLANGE 87691-RW
| Part No. | FANGE SIZE | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | H | B | C | D | L | ||
| 87691-08-08RW | 1/2″ | 12 | 08 | 44.5 | 7.75 | 31.7 | 24 | 43 |
| 87691-12-10RW | 3/4″ | 16 | 10 | 55 | 8.76 | 41.3 | 32 | 50.5 |
| 87691-12-12RW | 3/4″ | 19 | 12 | 61 | 8.76 | 41.3 | 32 | 60 |
| 87691-16-12RW | 1″ | 19 | 12 | 64 | 9.53 | 47.6 | 38 | 60 |
| 87691-16-16RW | 1″ | 25 | 16 | 73 | 9.53 | 47.6 | 38 | 72 |
| 87691-16-20RW | 1″ | 32 | 20 | 85.5 | 9.53 | 47.6 | 38 | 89.5 |
| 87691-20-16RW | 1.1/4″ | 25 | 16 | 77 | 10.29 | 54 | 44 | 72 |
| 87691-20-20RW | 1.1/4″ | 32 | 20 | 89.5 | 10.29 | 54 | 44 | 89.5 |
| 87691-24-20RW | 1.1/2″ | 32 | 20 | 94.5 | 12.57 | 63.5 | 51 | 89.5 |
| 87691-24-24RW | 1.1/2″ | 40 | 24 | 106.5 | 12.57 | 63.5 | 51 | 105.5 |
| 87691-32-24RW | 2″ | 40 | 24 | 114.5 | 12.57 | 79.4 | 67 | 105.5 |
| 87691-32-32RW | 2″ | 50 | 32 | 136 | 12.57 | 79.4 | 67 | 125 |
| Note:1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 87692-XX-XXRW. | ||||||||
