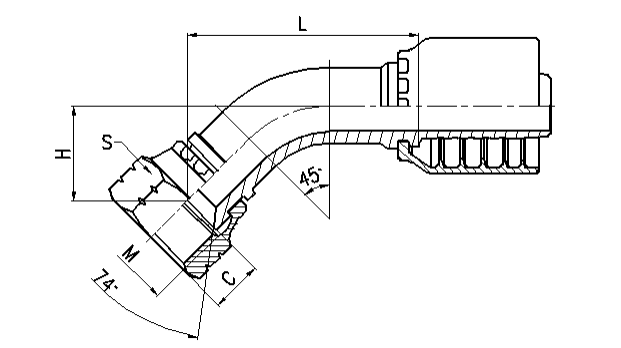

Integrated Hose Fitting jjc 26741-RW
| Part No. | Thread M | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | H | C | S | L | ||
| 26741-04-04RW | 7/16″×20 | 6 | 04 | 13.5 | 9 | 15 | 33.5 |
| 26741-05-04RW | 1/2″×20 | 6 | 04 | 13.5 | 9.5 | 17 | 33.5 |
| 26741-05-05RW | 1/2″×20 | 8 | 05 | 15.5 | 9.5 | 17 | 37.5 |
| 26741-05-06RW | 1/2″×20 | 10 | 06 | 17 | 9.5 | 17 | 41 |
| 26741-06-04RW | 9/16″×18 | 6 | 04 | 13.5 | 10.5 | 19 | 33.5 |
| 26741-06-05RW | 9/16″×18 | 8 | 05 | 15.5 | 10.5 | 19 | 37.5 |
| 26741-06-06RW | 9/16″×18 | 10 | 06 | 17 | 10.5 | 19 | 41 |
| 26741-06-08RW | 9/16″×18 | 13 | 08 | 20.5 | 10.5 | 19 | 50 |
| 26741-08-06RW | 3/4″×16 | 10 | 06 | 19 | 11 | 24 | 43 |
| 26741-08-08RW | 3/4″×16 | 13 | 08 | 22 | 11 | 24 | 51.5 |
| 26741-10-08RW | 7/8″×14 | 13 | 08 | 22 | 13 | 27 | 52 |
| 26741-10-10RW | 7/8″×14 | 16 | 10 | 25 | 13 | 27 | 60.5 |
| 26741-10-12RW | 7/8″×14 | 19 | 12 | 27 | 13 | 27 | 66.5 |
| 26741-12-08RW | 1.1/16″×12 | 13 | 08 | 23 | 15 | 32 | 53 |
| 26741-12-10RW | 1.1/16″×12 | 16 | 10 | 26 | 15 | 32 | 61.5 |
| 26741-12-12RW | 1.1/16″×12 | 19 | 12 | 28 | 15 | 32 | 67.5 |
| 26741-12-16RW | 1.1/16″×12 | 25 | 16 | 30.5 | 15 | 32 | 78 |
| 26741-16-12RW | 1.5/16″×12 | 19 | 12 | 28 | 16 | 41 | 67.5 |
| 26741-16-16RW | 1.5/16″×12 | 25 | 16 | 30.5 | 16 | 41 | 78 |
| 26741-16-20RW | 1.5/16″×12 | 32 | 20 | 35 | 16 | 41 | 93.5 |
| 26741-20-20WRW | 1.5/8″×12 | 32 | 20 | 36 | 17 | 50 | 94.5 |
| 26741-24-20WRW | 1.7/8″×12 | 32 | 20 | 40.5 | 20 | 55 | 108.5 |
| 26741-24-24WRW | 1.7/8″×12 | 38 | 24 | 40 | 20 | 55 | 108 |
| 26741-32-32WRW | 2.1/2″×12 | 51 | 32 | 51.5 | 23.5 | 75 | 127.5 |
| Note:1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 26742-XX-XXRW. | |||||||
