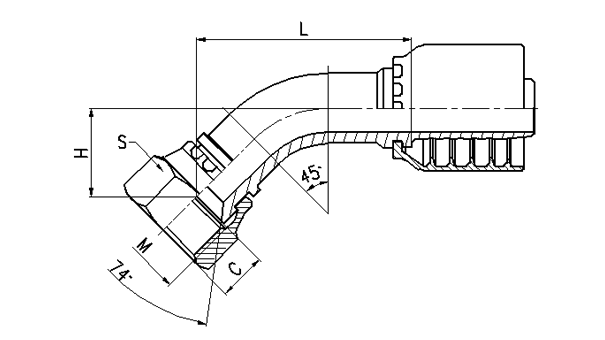

Integrated Hose Fitting REF. GBT 9065.1 20741-RW
| Part No. | Thread M | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | H | C | S | L | ||
| 20741-14-04RW | M14×1.5 | 6 | 04 | 13.5 | 8.5 | 19 | 33.5 |
| 20741-16-05RW | M16×1.5 | 8 | 05 | 16 | 8 | 22 | 38 |
| 20741-18-06RW | M18×1.5 | 10 | 06 | 18.5 | 10 | 24 | 42.5 |
| 20741-20-08RW | M20×1.5 | 13 | 08 | 22 | 10 | 27 | 51 |
| 20741-22-08RW | M22×1.5 | 13 | 08 | 22 | 10 | 27 | 51.5 |
| 20741-24-08RW | M24×1.5 | 13 | 08 | 22.5 | 11 | 30 | 52 |
| 20741-27-10RW | M27×1.5 | 16 | 10 | 26 | 11 | 32 | 61.5 |
| 20741-30-12RW | M30×1.5 | 19 | 12 | 28 | 11 | 36 | 67.5 |
| 20741-33-12RW | M33×2.0 | 19 | 12 | 28 | 13 | 41 | 67.5 |
| 20741-33-16RW | M33×2.0 | 25 | 16 | 30.5 | 13 | 41 | 78 |
| 20741-36-16RW | M36×2.0 | 25 | 16 | 31 | 14 | 41 | 78.5 |
| 20741-39-16RW | M39×2.0 | 25 | 16 | 31.5 | 14 | 46 | 79 |
| 20741-42-20RW | M42×2.0 | 32 | 20 | 36.5 | 15 | 50 | 95 |
| 20741-45-20WRW | M45×2.0 | 32 | 20 | 36 | 17 | 55 | 94 |
| 20741-52-24WRW | M52×2.0 | 38 | 24 | 43 | 17 | 60 | 110.5 |
| Note:1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 20742-XX-XXRW. | |||||||
