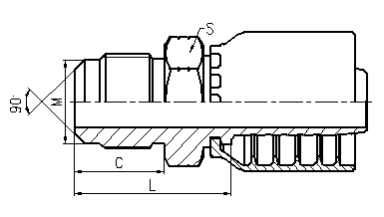

Integrated Hose Fitting SAE ORFS 17811-RW
| Part No. | Thread M | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | C | S | L | |||
| 17811-04-04RW | 7/16″×20 | 6 | 04 | 12.7 | 12 | 25.5 | |
| 17811-05-05RW | 1/2″×20 | 8 | 05 | 14.2 | 14 | 27 | |
| 17811-06-06RW | 5/8″×18 | 10 | 06 | 15.7 | 17 | 28.5 | |
| 17811-08-08RW | 3/4″×16 | 13 | 08 | 19 | 22 | 34 | |
| 17811-10-10RW | 7/8″×14 | 16 | 10 | 22.4 | 24 | 38.5 | |
| 17811-12-12RW | 1.1/16″×14 | 19 | 12 | 25.4 | 30 | 43.5 | |
| Note:1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 17812-XX-XXRW. | |||||||
