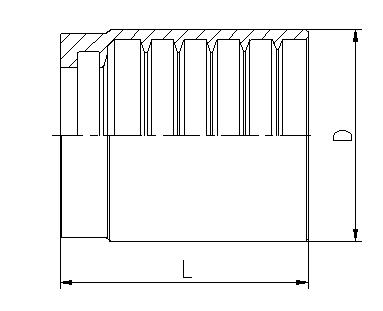

03310 FERRULE SAE100R2AT/ DIN20022 2SN WIRE NON-SKIVE HOSE
| PART NO. | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | D | L | ||||
| 03310-03 | 5 | 03 | 21 | 23 | |||
| 03310-04 | 6 | 04 | 23 | 30.5 | |||
| 03310-05 | 8 | 05 | 24 | 30 | |||
| 03310-06 | 10 | 06 | 26 | 32 | |||
| 03310-08 | 12 | 08 | 29 | 34 | |||
| 03310-10 | 16 | 10 | 33 | 37 | |||
| 03310-12 | 19 | 12 | 37 | 42 | |||
| 03310-16 | 25 | 16 | 46.7 | 51 | |||
| 03310-20 | 32 | 20 | 59 | 59 | |||
| 03310-24 | 38 | 24 | 67 | 67 | |||
| 03310-32 | 51 | 32 | 80 | 72 | |||
