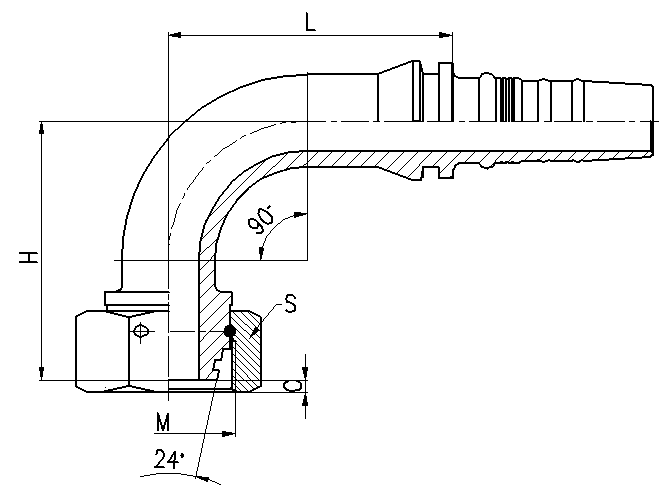

2-trip inner and outer rubber hose fitting 20593
| Part No. | FLANGE SIZE | HOSE BORE | TUBE O.D. | DIMENSIONS | ||||
| 径 DN | DASH | H | C | S | L | |||
| 20593-30-12W | M30×2.0 | 19 | 12 | 20 | 62.5 | 3 | 36 | 66 |
| 20593-36-12T | M36×2.0 | 19 | 12 | 25 | 63 | 3 | 46 | 66 |
| 20593-36-16W | M36×2.0 | 25 | 16 | 25 | 72 | 3 | 46 | 84 |
| 20593-42-12T | M42×2.0 | 32 | 20 | 25 | 64 | 5 | 50 | 66 |
| 20593-42-16W | M42×2.0 | 25 | 16 | 30 | 73.5 | 5 | 50 | 84 |
| 20593-42-20W | M42×2.0 | 32 | 20 | 30 | 86 | 5 | 50 | 103 |
| 20593-52-20T | M52×2.0 | 32 | 20 | 38 | 86.5 | 6.5 | 60 | 103 |
| 20593-52-24W | M52×2.0 | 38 | 24 | 38 | 98.5 | 6.5 | 60 | 119 |
