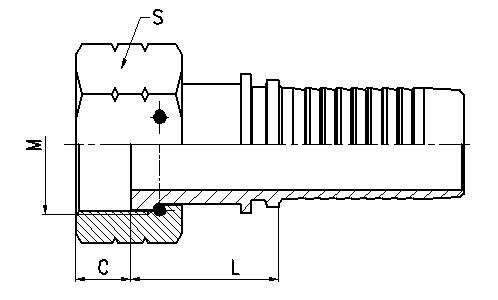

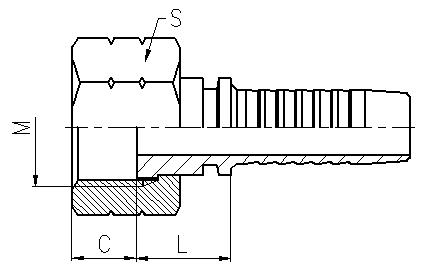

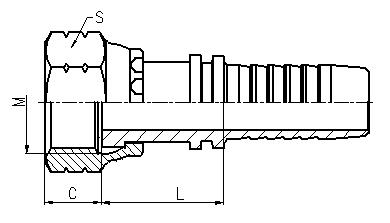

hose fitting SAE ORFS 24211
| Part No. | Thread M | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | C | S | L | |||
| 24211-04-04T | 9/16″×18 | 6 | 04 | 8.5 | 19 | 22.5 | |
| 24211-04-05 | 9/16″×18 | 8 | 05 | 8.5 | 19 | 22.5 | |
| 24211-04-06 | 9/16″×18 | 10 | 06 | 8.5 | 19 | 22.5 | |
| 24211-06-04T | 11/16″×16 | 6 | 04 | 10 | 22 | 23.5 | |
| 24211-06-05T | 11/16″×16 | 8 | 05 | 10 | 22 | 23.5 | |
| 24211-06-06T | 11/16″×16 | 10 | 06 | 10 | 22 | 25.5 | |
| 24211-06-08 | 11/16″×16 | 13 | 08 | 10 | 22 | 26 | |
| 24211-08-06T | 13/16″×16 | 10 | 06 | 11 | 27 | 25 | |
| 24211-08-08T | 13/16″×16 | 13 | 08 | 11 | 27 | 28 | |
| 24211-08-10 | 13/16″×16 | 16 | 10 | 11 | 27 | 29 | |
| 24211-10-08T | 1″×14 | 13 | 08 | 13.5 | 30 | 29.5 | |
| 24211-10-10T | 1″×14 | 16 | 10 | 13.5 | 30 | 33.5 | |
| 24211-10-12 | 1″×14 | 19 | 12 | 13.5 | 30 | 33.5 | |
| 24211-12-10T | 1.3/16″×12 | 16 | 10 | 15 | 36 | 31.5 | |
| 24211-12-12T | 1.3/16″×12 | 19 | 12 | 15 | 36 | 35 | |
| 24211-12-16 | 1.3/16″×12 | 25 | 16 | 15 | 36 | 36 | |
| 24211-16-12T | 1.7/16″×12 | 19 | 12 | 14.8 | 41 | 35 | |
| 24211-16-16T | 1.7/16″×12 | 25 | 16 | 14.8 | 41 | 35 | |
| 24211-16-20 | 1.7/16″×12 | 32 | 20 | 14.8 | 41 | 39.5 | |
| 24211-20-16T | 1.11/16″×12 | 25 | 16 | 15 | 50 | 35 | |
| 24211-20-20T | 1.11/16″×12 | 32 | 20 | 15 | 50 | 36.5 | |
| 24211-20-24W | 1.11/16″×12 | 38 | 24 | 15 | 50 | 39.5 | |
| 24211-24-20T | 2″×12 | 32 | 20 | 14.8 | 60 | 36 | |
| 24211-24-24T | 2″×12 | 38 | 24 | 14.8 | 60 | 36 | |
| Note:1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 24212-XX-XX. | |||||||
