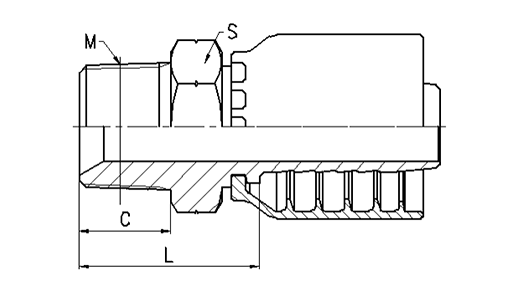

Integrated Hose Fitting BSP 13011-SPRW
| Part No. | Thread M | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | C | S | L | |||
| 13011-02-04SPRW | R1/8″×28 | 6 | 04 | 10 | 12 | 22.5 | |
| 13011-04-04SPRW | R1/4″×19 | 6 | 04 | 14.5 | 14 | 27 | |
| 13011-04-05SPRW | R1/4″×19 | 8 | 05 | 14.5 | 14 | 25 | |
| 13011-04-06SPRW | R1/4″×19 | 10 | 06 | 14.5 | 17 | 27 | |
| 13011-06-05SPRW | R3/8″×19 | 8 | 05 | 15 | 17 | 26.5 | |
| 13011-06-06SPRW | R3/8″×19 | 10 | 06 | 15 | 17 | 27.5 | |
| 13011-06-08SPRW | R3/8″×19 | 13 | 08 | 15 | 19 | 30 | |
| 13011-08-06SPRW | R1/2″×14 | 10 | 06 | 20 | 22 | 34.5 | |
| 13011-08-08SPRW | R1/2″×14 | 13 | 08 | 20 | 22 | 35 | |
| 13011-08-10SPRW | R1/2″×14 | 16 | 10 | 20 | 22 | 38 | |
| 13011-08-12SPRW | R1/2″×14 | 19 | 12 | 20 | 27 | 38 | |
| 13011-12-08SPRW | R3/4″×14 | 12 | 08 | 20 | 27 | 37 | |
| 13011-12-10SPRW | R3/4″×14 | 16 | 10 | 20 | 27 | 38 | |
| 13011-12-12SPRW | R3/4″×14 | 19 | 12 | 20 | 27 | 38.5 | |
| 13011-12-16SPRW | R3/4″×14 | 25 | 16 | 20 | 32 | 39.5 | |
| 13011-16-12SPRW | R1″×11 | 19 | 12 | 25.5 | 36 | 44 | |
| 13011-16-16SPRW | R1″×11 | 25 | 16 | 25.5 | 36 | 45 | |
| 13011-20-20SPRW | R1.1/4″×11 | 32 | 20 | 26.5 | 46 | 49.5 | |
| 13011-24-24SPRW | R1.1/2″×11 | 38 | 24 | 26.5 | 50 | 51.5 | |
| 13011-32-32SPRW | R2″×11 | 51 | 32 | 30 | 65 | 57 | |
| Note:1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 13012-XX-XXSPRW. | |||||||
