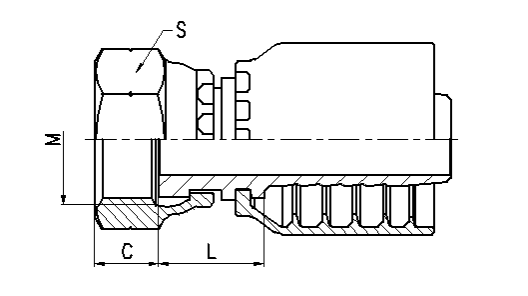

Integrated Hose Fitting BSP 22211-RW
| Part No. | Thread M | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | C | S | L | |||
| 22211-04-04RW | G1/4″×19 | 6 | 04 | 8 | 19 | 15.5 | |
| 22211-04-05RW | G1/4″×19 | 8 | 05 | 8 | 19 | 15.5 | |
| 22211-04-06RW | G1/4″×19 | 10 | 06 | 8 | 19 | 15.5 | |
| 22211-06-04RW | G3/8″×19 | 6 | 04 | 9 | 22 | 17 | |
| 22211-06-05RW | G3/8″×19 | 8 | 05 | 9 | 22 | 17 | |
| 22211-06-06RW | G3/8″×19 | 10 | 06 | 9 | 22 | 17 | |
| 22211-06-08RW | G3/8″×19 | 13 | 08 | 9 | 22 | 17.5 | |
| 22211-08-06TRW | G1/2″×14 | 10 | 06 | 10.5 | 27 | 18 | |
| 22211-08-08RW | G1/2″×14 | 13 | 08 | 10.5 | 27 | 18.5 | |
| 22211-10-08RW | G5/8″×14 | 13 | 08 | 12 | 30 | 20 | |
| 22211-10-10RW | G5/8″×14 | 16 | 10 | 12 | 30 | 21 | |
| 22211-12-08TRW | G3/4″×14 | 13 | 08 | 13.5 | 32 | 20.5 | |
| 22211-12-10RW | G3/4″×14 | 16 | 10 | 13.5 | 32 | 21.5 | |
| 22211-12-12RW | G3/4″×14 | 19 | 12 | 13.5 | 32 | 21.5 | |
| 22211-16-12TRW | G1″×11 | 19 | 12 | 15.5 | 41 | 21.5 | |
| 22211-16-16RW | G1″×11 | 25 | 16 | 15.5 | 41 | 23 | |
| 22211-20-20WRW | G1.1/4″×11 | 32 | 20 | 15.5 | 50 | 26 | |
| 22211-24-24WRW | G1.1/2″×11 | 38 | 24 | 17.5 | 55 | 27.5 | |
| 22211-32-32WRW | G2″×11 | 51 | 32 | 23 | 70 | 30.5 | |
| Note:1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 22212-XX-XXRW. | |||||||
