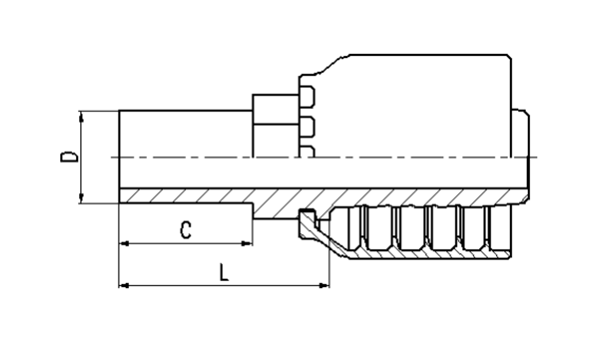

Integrated Hose Fitting DIN24′ 50011-RW

Part No.	TUBE O.D.	HOSE BORE		DIMENSIONS		NOTE
Part No.	TUBE O.D.	DN	DASH	C	L	NOTE
50011-06-04RW	6	6	04	22	29	Light series
50011-10-05RW	10	8	05	23	31
50011-12-08RW	12	13	08	23	33
50011-15-06RW	15	10	06	25	35.5
50011-15-08RW	15	13	08	25	35.5
50011-18-08RW	18	13	08	26	36.5
50011-18-10RW	18	16	10	26	41
50011-22-10RW	22	16	10	28	44
50011-22-12RW	22	19	12	28	44
50011-22-16RW	22	25	16	28	46
50011-28-16RW	28	25	16	30	47
50011-35-20RW	35	32	20	36	56
50011-42-24RW	42	38	24	40	62
50011-08-04RW	8	6	04	24	31	heavy series
50011-08-05RW	8	8	05	24	33
50011-08-06RW	8	10	06	24	33
50011-10-04RW	10	6	04	26	35
50011-12-05RW	12	8	05	26	35.5
50011-14-06RW	14	10	06	29	39.5
50011-16-08RW	16	13	08	30	41
50011-16-10RW	16	16	10	30	45.5
50011-20-10RW	20	16	10	36	52.5
50011-25-16RW	25	25	16	40	57
50011-30-16RW	30	25	16	44	63
50011-38-20RW	38	32	20	50	70
Note:1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 50012-XX-XXRW.
