Integrated Hose Fitting FLANGE 87311-RW

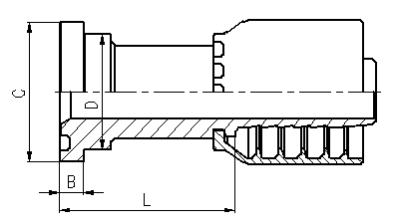

| Part No. | FANGE SIZE | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | B | C | D | L | ||
| 87311-08-08RW | 1/2″ | 13 | 08 | 6.73 | 30.2 | 24 | 46 |
| 87311-12-08RW | 3/4″ | 13 | 08 | 6.73 | 38.1 | 31.7 | 47 |
| 87311-12-10RW | 3/4″ | 16 | 10 | 6.73 | 38.1 | 31.7 | 48 |
| 87311-12-12RW | 3/4″ | 19 | 12 | 6.73 | 38.1 | 31.7 | 48 |
| 87311-12-16RW | 3/4″ | 25 | 16 | 6.73 | 38.1 | 31.7 | 49 |
| 87311-16-12RW | 1″ | 19 | 12 | 8 | 44.4 | 38 | 51 |
| 87311-16-16RW | 1″ | 25 | 16 | 8 | 44.4 | 38 | 52 |
| 87311-16-20RW | 1″ | 32 | 20 | 8 | 44.4 | 38 | 53 |
| 87311-20-16RW | 1.1/4″ | 25 | 16 | 8 | 50.8 | 43 | 57 |
| 87311-20-20RW | 1.1/4″ | 32 | 20 | 8 | 50.8 | 43 | 58 |
| 87311-24-20RW | 1.1/2″ | 32 | 20 | 8 | 60.3 | 50 | 68 |
| 87311-24-24RW | 1.1/2″ | 38 | 24 | 8 | 60.3 | 50 | 68 |
| 87311-32-24RW | 2″ | 38 | 24 | 9.53 | 71.4 | 62 | 70 |
| 87311-32-32RW | 2″ | 51 | 32 | 9.53 | 71.4 | 62 | 70 |
| Note:1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 87312-XX-XXRW. | |||||||
