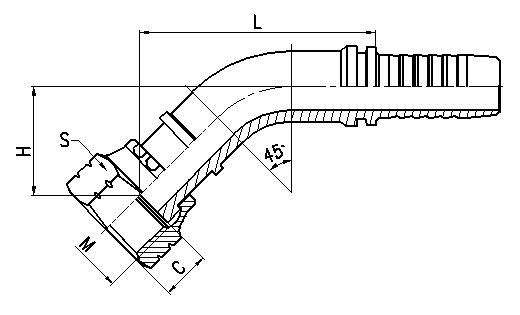

hose fitting SAE ORFS 24241
| Part No. | Thread M | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | H | C | S | L | ||

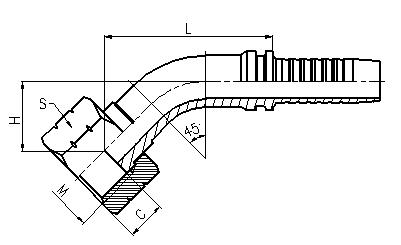

| 24241-04-04T | 9/16″×18 | 6 | 04 | 15 | 8.5 | 19 | 37 |
| 24241-04-05 | 9/16″×18 | 8 | 05 | 20.5 | 8.5 | 19 | 42.5 |
| 24241-04-06 | 9/16″×18 | 10 | 06 | 22 | 8.5 | 19 | 46 |
| 24241-06-04T | 11/16″×16 | 6 | 04 | 13.5 | 10 | 22 | 33.5 |
| 24241-06-05T | 11/16″×16 | 8 | 05 | 15.5 | 10 | 22 | 37.5 |
| 24241-06-06T | 11/16″×16 | 10 | 06 | 17.5 | 10 | 22 | 42 |
| 24241-06-08 | 11/16″×16 | 13 | 08 | 27 | 10 | 22 | 56.5 |
| 24241-08-06T | 13/16″×16 | 10 | 06 | 17.5 | 11 | 27 | 41 |
| 24241-08-08T | 13/16″×16 | 13 | 08 | 20 | 11 | 27 | 50 |
| 24241-08-10 | 13/16″×16 | 16 | 10 | 31.5 | 11 | 27 | 67 |
| 24241-10-08T | 1″×14 | 13 | 08 | 21 | 13.5 | 30 | 49.5 |
| 24241-10-10T | 1″×14 | 16 | 10 | 23.5 | 13.5 | 30 | 60 |
| 24241-10-12 | 1″×14 | 19 | 12 | 36 | 13.5 | 30 | 76 |
| 24241-12-10T | 1.3/16″×12 | 16 | 10 | 24.5 | 15 | 36 | 60 |
| 24241-12-12T | 1.3/16″×12 | 19 | 12 | 26 | 15 | 36 | 66.5 |
| 24241-12-16 | 1.3/16″×12 | 25 | 16 | 41 | 15 | 36 | 87.5 |
| 24241-16-12T | 1.7/16″×12 | 19 | 12 | 26.5 | 14.8 | 41 | 66.5 |
| 24241-16-16T | 1.7/16″×12 | 25 | 16 | 29.5 | 14.8 | 41 | 77 |
| 24241-16-20 | 1.7/16″×12 | 32 | 20 | 45.5 | 14.8 | 41 | 104 |
| 24241-20-16T | 1.11/16″×12 | 25 | 16 | 29.5 | 15 | 50 | 77 |
| 24241-20-20T | 1.11/16″×12 | 32 | 20 | 34 | 15 | 50 | 92.5 |

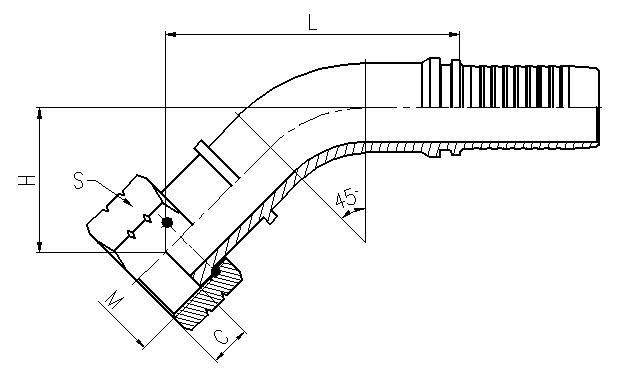

| 24241-20-24W | 1.11/16″×12 | 38 | 24 | 52.5 | 15 | 50 | 120 |
| 24241-24-20T | 2″×12 | 32 | 20 | 34 | 14.8 | 60 | 92.5 |
| 24241-24-24T | 2″×12 | 38 | 24 | 37 | 14.8 | 60 | 105 |
| Note:1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 24242-XX-XX. | |||||||
