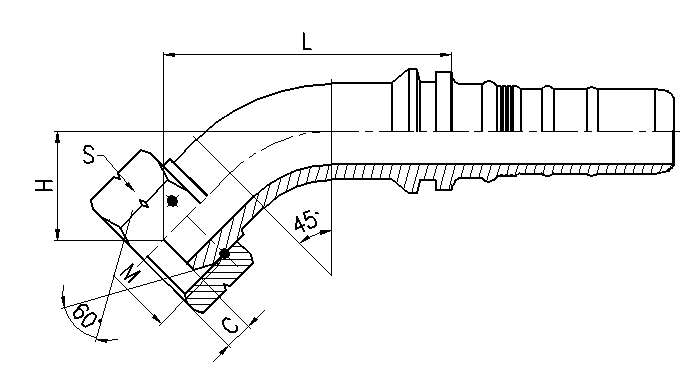

1 行程内外橡胶软管接头 22643-W
| 部件号. | 主题 M | 软管内径 | 尺寸 | ||||
| DN | DASH | H | C | S | L | ||
| 22643-12-12W | G3/4″×14 | 19 | 12 | 31.5 | 10.9 | 32 | 80 |
| 22643-16-16W | G1″×11 | 25 | 16 | 33 | 11.7 | 41 | 91 |
| 22643-20-20W | G1.1/4″×11 | 32 | 20 | 38 | 11 | 50 | 110 |
| 22643-24-24W | G1.1/2″×11 | 38 | 24 | 44.5 | 13 | 55 | 126 |
| 22643-32-32W | G2″×11 | 51 | 32 | 53 | 16 | 70 | 147 |
