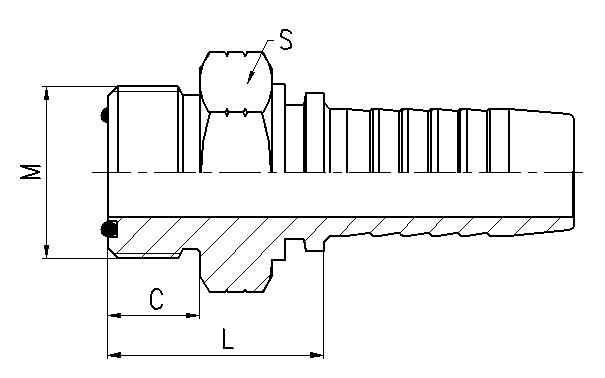

软管接头 SAE ORFS 14211
| 部件号. | 主题 M | 软管内径 | 尺寸 | ||||
| DN | DASH | C | S | L | |||
| 14211-04-04 | 9/16″×18 | 6 | 04 | 9.8 | 17 | 22.3 | |
| 14211-06-04 | 11/16″×16 | 6 | 04 | 11.2 | 19 | 24 | |
| 14211-06-06 | 11/16″×16 | 10 | 06 | 11.2 | 19 | 24 | |
| 14211-08-06 | 13/16″×16 | 10 | 06 | 12.8 | 22 | 27.5 | |
| 14211-08-08 | 13/16″×16 | 13 | 08 | 12.8 | 22 | 28.5 | |
| 14211-08-10 | 13/16″×16 | 16 | 10 | 12.8 | 22 | 28.5 | |
| 14211-10-08 | 1″×14 | 13 | 08 | 15.5 | 27 | 32.5 | |
| 14211-10-10 | 1″×14 | 16 | 10 | 15.5 | 27 | 34 | |
| 14211-12-08 | 1.3/16″×12 | 13 | 08 | 17 | 32 | 35.5 | |
| 14211-12-10 | 1.3/16″×12 | 16 | 10 | 17 | 32 | 36.5 | |
| 14211-12-12 | 1.3/16″×12 | 19 | 12 | 17 | 32 | 36.5 | |
| 14211-16-12 | 1.7/16″×12 | 19 | 12 | 17.5 | 38 | 37 | |
| 14211-16-16 | 1.7/16″×12 | 25 | 16 | 17.5 | 38 | 38.5 | |
| 14211-20-20 | 1.11/16″×12 | 32 | 20 | 17.5 | 46 | 41.5 | |
| 14211-24-24 | 2″×12 | 38 | 24 | 17.5 | 55 | 43.5 | |
| 注：1.适用于编织软管。 2.如与螺旋软管一起使用，软管接头系列号为 14212-XX-XX。. | |||||||
