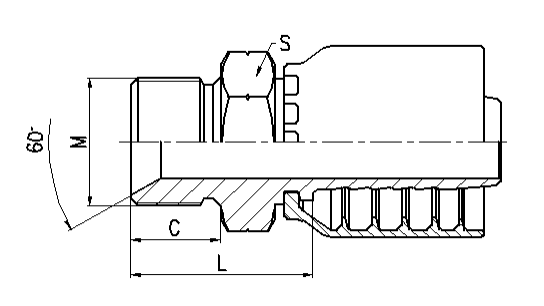

英制集成软管接头 12611A-RW
| 部件号. | 主题 M | 软管内径 | 尺寸 | ||||
| DN | DASH | C | S | L | |||
| 12611A-04-04RW | G1/4″×19 | 6 | 04 | 12 | 19 | 24.5 | |
| 12611A-04-05RW | G1/4″×19 | 8 | 05 | 12 | 19 | 24.5 | |
| 12611A-06-05RW | G3/8″×19 | 8 | 05 | 13.5 | 22 | 26 | |
| 12611A-06-06RW | G3/8″×19 | 10 | 06 | 13.5 | 22 | 28 | |
| 12611A-06-08RW | G3/8″×19 | 13 | 08 | 13.5 | 22 | 28.5 | |
| 12611A-08-06RW | G1/2″×14 | 10 | 06 | 16 | 27 | 33 | |
| 12611A-08-08RW | G1/2″×14 | 13 | 08 | 16 | 27 | 33.5 | |
| 12611A-08-10RW | G1/2″×14 | 16 | 10 | 16 | 27 | 32 | |
| 12611A-10-08RW | G5/8″×14 | 13 | 08 | 17.5 | 30 | 35 | |
| 12611A-10-10RW | G5/8″×14 | 16 | 10 | 17.5 | 30 | 36 | |
| 12611A-12-08RW | G3/4″×14 | 13 | 08 | 18.5 | 32 | 36.5 | |
| 12611A-12-10RW | G3/4″×14 | 16 | 10 | 18.5 | 32 | 37.5 | |
| 12611A-12-12RW | G3/4″×14 | 19 | 12 | 18.5 | 32 | 37.5 | |
| 12611A-16-12RW | G1″×11 | 19 | 12 | 20.5 | 41 | 42.5 | |
| 12611A-16-16RW | G1″×11 | 25 | 16 | 20.5 | 41 | 43.5 | |
| 12611A-20-16RW | G1.1/4″×11 | 25 | 16 | 20.5 | 50 | 45.5 | |
| 12611A-20-20RW | G1.1/4″×11 | 32 | 20 | 20.5 | 50 | 46.5 | |
| 12611A-24-24RW | G1.1/2″×11 | 38 | 24 | 23 | 55 | 49 | |
| 12611A-32-32RW | G2″×11 | 51 | 32 | 25.5 | 70 | 54.5 | |
| 注：1.适用于编织软管。 2.如与螺旋软管一起使用，软管接头系列号为 12612A-XX-XXRW。. | |||||||
