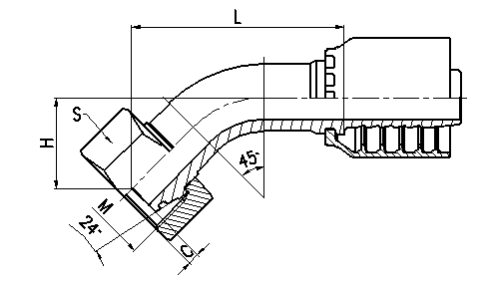

集成软管接头 DIN24′ 20541-TRW
| 部件号. | 管外径. | 软管内径 | 管外径. | 尺寸 | ||||
| DN | DASH | H | C | S | L | |||
| 20541-14-04TRW | M14×1.5 | 6 | 04 | 6 | 17.5 | 1 | 17 | 38.5 |
| 20541-14-05RW | M14×1.5 | 8 | 05 | 6 | 17.5 | 1 | 17 | 37.5 |
| 20541-16-04TRW | M16×1.5 | 6 | 04 | 8 | 16.7 | 1.5 | 19 | 36.5 |
| 20541-16-05TRW | M16×1.5 | 8 | 05 | 8 | 18 | 1.5 | 19 | 41 |
| 20541-18-06TRW | M18×1.5 | 10 | 06 | 10 | 20 | 2.5 | 22 | 44.5 |
| 20541-20-06TRW | M20×1.5 | 10 | 06 | 12 | 20.5 | 2.5 | 24 | 44 |
| 20541-22-06TRW | M22×1.5 | 10 | 06 | 14 | 21 | 2 | 27 | 44.5 |
| 20541-22-08TRW | M22×1.5 | 13 | 08 | 14 | 23.5 | 2 | 27 | 53.5 |
| 20541-22-10WRW | M22×1.5 | 16 | 10 | 14 | 24.5 | 2 | 27 | 55 |
| 20541-24-08TRW | M24×1.5 | 13 | 08 | 16 | 24 | 3 | 30 | 53 |
| 20541-30-10TRW | M30×2.0 | 16 | 10 | 20 | 29 | 2.5 | 36 | 65.5 |
| 20541-30-12TRW | M30×2.0 | 19 | 12 | 20 | 30.5 | 2.5 | 36 | 71 |
| 20541-36-12TRW | M36×2.0 | 19 | 12 | 25 | 31 | 3 | 46 | 71.5 |
| 20541-36-16TRW | M36×2.0 | 25 | 16 | 25 | 33.5 | 3 | 46 | 82 |
| 20541-42-16TRW | M42×2.0 | 25 | 16 | 30 | 34.5 | 4 | 50 | 82 |
| 20541-42-20TRW | M42×2.0 | 32 | 20 | 30 | 39 | 4 | 50 | 97.5 |
| 20541-52-20TRW | M52×2.0 | 32 | 20 | 38 | 39.5 | 4.5 | 60 | 98 |
| 20541-52-24TRW | M52×2.0 | 38 | 24 | 38 | 43 | 4.5 | 60 | 110 |
| 注：1.适用于编织软管。 2.如与螺旋软管一起使用，软管接头系列号为 20542-XX-XXRW。. | ||||||||
