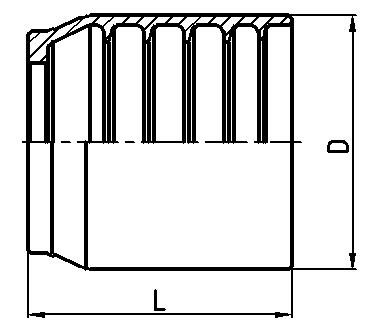

03310Y 卡套 SAE100R1AT/2AT DIN20022 1SN/2SN 钢丝非卡式软管
| 部件编号. | 软管内径 | 尺寸 | |||||
| DN | DASH | D | L | ||||
| 03310Y-04 | 6 | 04 | 23.3 | 29 | |||
| 03310Y-05 | 8 | 05 | 25 | 29.5 | |||
| 03310Y-06 | 10 | 06 | 28 | 30 | |||
| 03310Y-08 | 12 | 08 | 31.4 | 32 | |||
| 03310Y-10 | 16 | 10 | 35 | 36 | |||
| 03310Y-12 | 19 | 12 | 39 | 41 | |||
| 03310Y-16 | 25 | 16 | 48.5 | 48 | |||
| 03310Y-20 | 32 | 20 | 60.5 | 56.8 | |||
| 03310Y-24 | 38 | 24 | 69 | 70 | |||
| 03310Y-32 | 51 | 32 | 82.5 | 72.5 | |||
