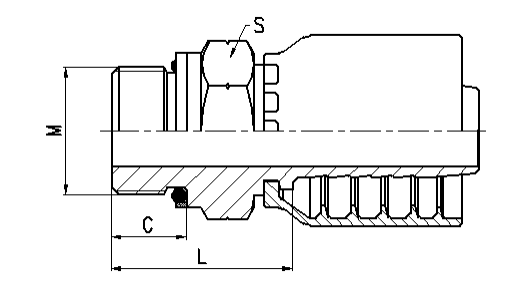

集成软管接头 BSP 12211-RW
| 代号 | 螺纹 M | 胶管内径 | 尺寸 | ||||
| 部件号. | 主题 M | 公制内径 DN | 标号 DASH | C | S | L | |
| 12211-04-04RW | G1/4″×19 | 6 | 04 | 11 | 19 | 23.5 | |
| 12211-04-06RW | G1/4″×19 | 8 | 05 | 11 | 19 | 23.5 | |
| 12211-06-06RW | G3/8″×19 | 10 | 06 | 12 | 22 | 26.5 | |
| 12211-06-08RW | G3/8″×19 | 13 | 08 | 14 | 27 | 33.5 | |
| 12211-08-06RW | G1/2″×14 | 10 | 06 | 14 | 27 | 33.5 | |
| 12211-08-08RW | G1/2″×14 | 13 | 08 | 14 | 27 | 34 | |
| 12211-10-08RW | G5/8″×14 | 13 | 08 | 15.5 | 30 | 34 | |
| 12211-10-10RW | G5/8″×14 | 16 | 10 | 15.5 | 30 | 36 | |
| 12211-12-10RW | G3/4″×14 | 16 | 10 | 15.5 | 32 | 36 | |
| 12211-12-12RW | G3/4″×14 | 19 | 12 | 15.5 | 32 | 37.5 | |
| 12211-12-16RW | G3/4″×14 | 25 | 16 | 15.5 | 41 | 38.5 | |
| 12211-16-16RW | G1″×11 | 25 | 16 | 18.5 | 41 | 44.5 | |
| 12211-20-20RW | G1.1/4″×11 | 32 | 20 | 20 | 50 | 46 | |
| 12211-24-24RW | G1.1/2″×11 | 38 | 24 | 21.5 | 55 | 50.5 | |
| 注： 1.表中代号用于编织软管。 2.如需用于缠绕软管代号改为 12212-xx-xxrw。 | |||||||
| 注：1.适用于编织软管。 2.如与螺旋软管一起使用，软管接头系列号为 12212-XX-XXRW。. | |||||||
