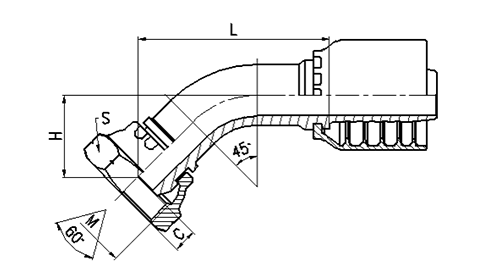

一体式软管接头 BSP 22641-RW
| 部件号. | 主题 M | 软管内径 | 尺寸 | ||||
| DN | DASH | H | C | S | L | ||
| 22641-04-04RW | G1/4″×19 | 6 | 04 | 15.5 | 5.5 | 19 | 35.5 |
| 22641-06-04RW | G3/8″×19 | 6 | 04 | 16.5 | 6.3 | 22 | 36.5 |
| 22641-06-05RW | G3/8″×19 | 8 | 05 | 18 | 6.3 | 22 | 40 |
| 22641-06-06RW | G3/8″×19 | 10 | 06 | 20 | 6.3 | 22 | 44 |
| 22641-08-06TRW | G1/2″×14 | 10 | 06 | 21 | 7.5 | 27 | 45 |
| 22641-08-08RW | G1/2″×14 | 13 | 08 | 24 | 7.5 | 27 | 54 |
| 22641-10-08RW | G5/8″×14 | 13 | 08 | 24.5 | 9.5 | 30 | 54.5 |
| 22641-10-10RW | G5/8″×14 | 16 | 10 | 27.5 | 9.5 | 30 | 63 |
| 22641-12-08TRW | G3/4″×14 | 13 | 08 | 26 | 10.9 | 32 | 52 |
| 22641-12-10RW | G3/4″×14 | 16 | 10 | 27.5 | 10.9 | 32 | 63 |
| 22641-12-12RW | G3/4″×14 | 19 | 12 | 29.5 | 10.9 | 32 | 69 |
| 22641-16-12RW | G1″×11 | 19 | 12 | 31 | 11.7 | 41 | 70.5 |
| 22641-16-16RW | G1″×11 | 25 | 16 | 33.5 | 11.7 | 41 | 81 |
| 22641-20-16TRW | G1.1/4″×11 | 25 | 16 | 30 | 11 | 50 | 78 |
| 22641-20-20WRW | G1.1/4″×11 | 32 | 20 | 38 | 11 | 50 | 97 |
| 22641-24-24WRW | G1.1/2″×11 | 38 | 24 | 44.5 | 13 | 55 | 112 |
| 22641-32-32WRW | G2″×11 | 51 | 32 | 53 | 16 | 70 | 129 |
| 注：1.适用于编织软管。 2.如与螺旋软管一起使用，软管接头系列号为 22642-XX-XXRW。. | |||||||
