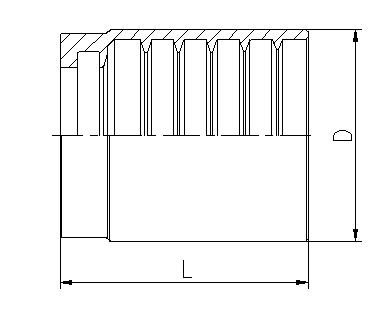

00110-A 卡套 SAE100R1AT/DIN20022 1SN 钢丝非防滑软管
| 部件编号. | 软管内径 | 尺寸 | |||||
| DN | DASH | D | L | ||||
| 00110-03A | 5 | 03 | 18.5 | 23 | |||
| 00110-04A | 6 | 04 | 21 | 27.5 | |||
| 00110-05A | 8 | 05 | 21.5 | 28 | |||
| 00110-06A | 10 | 06 | 24.3 | 30 | |||
| 00110-08A | 12 | 08 | 28 | 34 | |||
| 00110-10A | 16 | 10 | 31.3 | 37 | |||
| 00110-12A | 20 | 12 | 35.5 | 42 | |||
| 00110-16A | 25 | 16 | 43.5 | 51 | |||
| 00110-20A | 32 | 20 | 53.2 | 59 | |||
| 00110-24A | 38 | 24 | 59.5 | 74 | |||
| 00110-32A | 51 | 32 | 73.5 | 77 | |||
