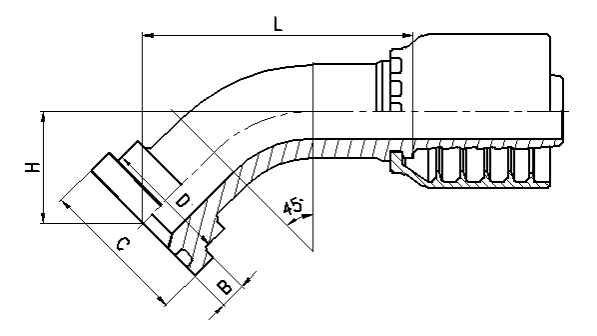

集成软管接头法兰 87341-RW
| 部件号. | 量程大小 | 软管内径 | 尺寸 | |||||
| DN | DASH | H | B | C | D | L | ||
| 87341-08-08RW | 1/2″ | 13 | 08 | 21.5 | 6.73 | 30.2 | 24 | 51 |
| 87341-12-08RW | 3/4″ | 13 | 08 | 22 | 6.73 | 38.1 | 31.7 | 51.5 |
| 87341-12-10RW | 3/4″ | 16 | 10 | 25 | 6.73 | 38.1 | 31.7 | 59.5 |
| 87341-12-12RW | 3/4″ | 19 | 12 | 26.5 | 6.73 | 38.1 | 31.7 | 67 |
| 87341-16-12RW | 1″ | 19 | 12 | 26.5 | 8 | 44.4 | 38 | 67 |
| 87341-16-16RW | 1″ | 25 | 16 | 29.5 | 8 | 44.4 | 38 | 77 |
| 87341-16-20RW | 1″ | 32 | 20 | 34 | 8 | 44.4 | 38 | 92.5 |
| 87341-20-16RW | 1.1/4″ | 25 | 16 | 29.5 | 8 | 50.8 | 43 | 77 |
| 87341-20-20RW | 1.1/4″ | 32 | 20 | 34 | 8 | 50.8 | 43 | 92.5 |
| 87341-24-20RW | 1.1/2″ | 32 | 20 | 35 | 8 | 60.3 | 50 | 94 |
| 87341-24-24RW | 1.1/2″ | 38 | 24 | 39 | 8 | 60.3 | 50 | 106.5 |
| 87341-32-24RW | 2″ | 38 | 24 | 39 | 9.53 | 71.4 | 62 | 106.5 |
| 87341-32-32RW | 2″ | 51 | 32 | 46.5 | 9.53 | 71.4 | 62 | 122 |
| 注：1.适用于编织软管。 2.如果与螺旋软管一起使用，软管接头系列号为 87342-XX-XXRW。. | ||||||||
