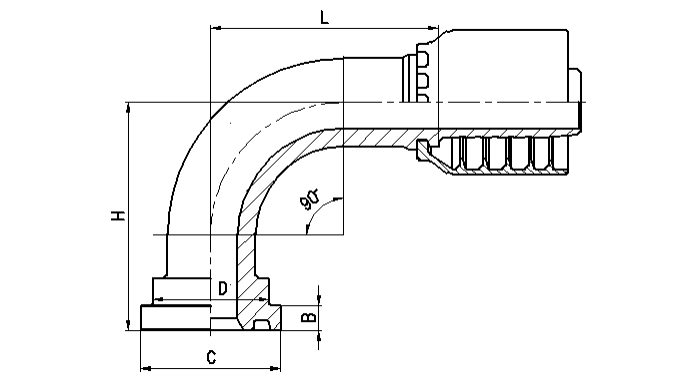

集成软管接头法兰 87391-RW
| 部件号. | 量程大小 | 软管内径 | 尺寸 | |||||
| DN | DASH | H | B | C | D | L | ||
| 87391-08-08RW | 1/2″ | 12 | 08 | 43.5 | 6.73 | 30.2 | 24 | 43 |
| 87391-12-08RW | 3/4″ | 12 | 08 | 44.5 | 6.73 | 38.1 | 31.7 | 43 |
| 87391-12-10RW | 3/4″ | 16 | 10 | 51 | 6.73 | 38.1 | 31.7 | 50.5 |
| 87391-12-12RW | 3/4″ | 19 | 12 | 57 | 6.73 | 38.1 | 31.7 | 60 |
| 87391-12-16RW | 3/4″ | 25 | 16 | 66 | 6.73 | 38.1 | 31.7 | 72 |
| 87391-16-12RW | 1″ | 19 | 12 | 57 | 8 | 44.4 | 38 | 60 |
| 87391-16-16RW | 1″ | 25 | 16 | 66 | 8 | 44.4 | 38 | 72 |
| 87391-16-20RW | 1″ | 32 | 20 | 78.5 | 8 | 44.4 | 38 | 89.5 |
| 87391-20-16RW | 1.1/4″ | 25 | 16 | 66 | 8 | 50.8 | 43 | 72 |
| 87391-20-20RW | 1.1/4″ | 32 | 20 | 78.5 | 8 | 50.8 | 43 | 89.5 |
| 87391-20-24RW | 1.1/4″ | 38 | 24 | 90.5 | 8 | 50.8 | 43 | 105.5 |
| 87391-24-20RW | 1.1/2″ | 32 | 20 | 80.5 | 8 | 60.3 | 50 | 89.5 |
| 87391-24-24RW | 1.1/2″ | 40 | 24 | 92.5 | 8 | 60.3 | 50 | 105.5 |
| 87391-32-24RW | 2″ | 40 | 24 | 92.5 | 9.53 | 71.4 | 62 | 105.5 |
| 87391-32-32RW | 2″ | 50 | 32 | 114.3 | 9.53 | 71.4 | 62 | 124.8 |
| 87391-40-32RW | 2.1/2″ | 50 | 32 | 116.3 | 9.53 | 84.1 | 74.4 | 124.8 |
| 注：1.适用于编织软管。 2.如与螺旋软管一起使用，软管接头系列号为 87392-XX-XXRW。. | ||||||||
