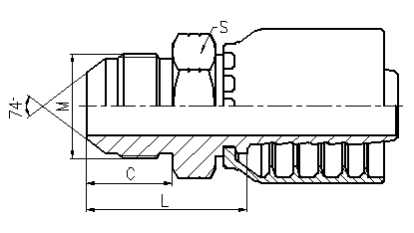

集成软管接头 jjc 16711-RW
| 部件号. | 主题 M | 软管内径 | 尺寸 | ||||
| DN | DASH | C | S | L | |||
| 16711-04-04RW | 7/16″×20 | 6 | 04 | 14 | 12 | 26.5 | |
| 16711-05-04RW | 1/2″×20 | 6 | 04 | 14 | 14 | 26.5 | |
| 16711-05-05RW | 1/2″×20 | 8 | 05 | 14 | 14 | 26.5 | |
| 16711-05-06RW | 1/2″×20 | 10 | 06 | 14 | 17 | 26.5 | |
| 16711-06-04RW | 9/16″×18 | 6 | 04 | 14.1 | 17 | 26.5 | |
| 16711-06-05RW | 9/16″×18 | 8 | 05 | 14.1 | 17 | 26.5 | |
| 16711-06-06RW | 9/16″×18 | 10 | 06 | 14.1 | 17 | 26.5 | |
| 16711-08-06RW | 3/4″×16 | 10 | 06 | 16.7 | 22 | 31.5 | |
| 16711-08-08RW | 3/4″×16 | 13 | 08 | 16.7 | 22 | 32 | |
| 16711-10-08RW | 7/8″×14 | 13 | 08 | 19.3 | 24 | 34.3 | |
| 16711-10-10RW | 7/8″×14 | 16 | 10 | 19.3 | 24 | 35.5 | |
| 16711-12-10RW | 1.1/16″×12 | 16 | 10 | 21.9 | 27 | 40 | |
| 16711-12-12RW | 1.1/16″×12 | 19 | 12 | 21.9 | 27 | 40 | |
| 16711-12-16RW | 1.1/16″×12 | 25 | 16 | 21.9 | 30 | 41 | |
| 16711-16-12RW | 1.5/16″×12 | 19 | 12 | 23.1 | 36 | 42.5 | |
| 16711-16-16RW | 1.5/16″×12 | 25 | 16 | 23.1 | 36 | 43.5 | |
| 16711-20-16RW | 1.5/8″×12 | 25 | 16 | 24.3 | 46 | 46.5 | |
| 16711-20-20RW | 1.5/8″×12 | 32 | 20 | 24.3 | 46 | 47.5 | |
| 16711-24-20RW | 1.7/8″×12 | 32 | 20 | 27.5 | 50 | 53 | |
| 16711-24-24RW | 1.7/8″×12 | 38 | 24 | 27.5 | 50 | 53 | |
| 16711-32-32RW | 2.1/2″×12 | 51 | 32 | 33.9 | 65 | 62 | |
| 注：1.适用于编织软管。 2.如果与螺旋软管一起使用，软管接头系列号为 16712-XX-XXRW。. | |||||||
