集成软管接头 BANJO 70011-RW

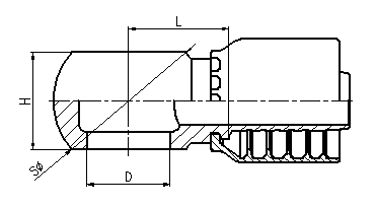

| 部件号. | 主题 M | 软管内径 | 尺寸 | ||||
| DN | DASH | D | SΦ | H | L | ||
| 70011-12-04RW | M12×1.5 | 6 | 04 | 12.1 | 20 | 12 | 20.5 |
| 70011-12-05RW | M12×1.5 | 8 | 05 | 12.1 | 20 | 12 | 20.5 |
| 70011-12-06RW | M12×1.5 | 10 | 06 | 12.1 | 20 | 12 | 20.5 |
| 70011-14-04RW | M14×1.5 | 6 | 04 | 14.1 | 24 | 14 | 21 |
| 70011-14-05RW | M14×1.5 | 8 | 05 | 14.1 | 24 | 14 | 21 |
| 70011-14-06RW | M14×1.5 | 10 | 06 | 14.1 | 24 | 14 | 21 |
| 70011-16-04RW | M16×1.5 | 6 | 04 | 16.1 | 28 | 16 | 20.5 |
| 70011-16-05RW | M16×1.5 | 8 | 05 | 16.1 | 28 | 16 | 20.5 |
| 70011-16-06RW | M16×1.5 | 10 | 06 | 16.1 | 28 | 16 | 20.5 |
| 70011-18-04RW | M18×1.5 | 6 | 04 | 18.1 | 32 | 20 | 23 |
| 70011-18-05RW | M18×1.5 | 8 | 05 | 18.1 | 32 | 20 | 24 |
| 70011-18-06RW | M18×1.5 | 10 | 06 | 18.1 | 32 | 20 | 24 |
| 70011-18-08RW | M18×1.5 | 13 | 08 | 18.1 | 32 | 20 | 24.5 |
| 70011-22-06RW | M22×1.5 | 10 | 06 | 22.1 | 39 | 25 | 28 |
| 70011-22-08RW | M22×1.5 | 13 | 08 | 22.1 | 39 | 25 | 28.5 |
| 70011-22-10RW | M22×1.5 | 16 | 10 | 22.1 | 39 | 25 | 28 |
| 70011-26-12RW | M26×1.5 | 19 | 12 | 26.1 | 46 | 30 | 32.5 |
| 70011-30-16RW | M30×1.5 | 25 | 16 | 30.1 | 54 | 36 | 37 |
| 70011-30-20RW | M30×1.5 | 32 | 20 | 30.1 | 54 | 36 | 40 |
| 注：1.适用于编织软管。 2.如与螺旋软管一起使用，软管接头系列号为 70012-XX-XXRW。. | |||||||
